Step - 01

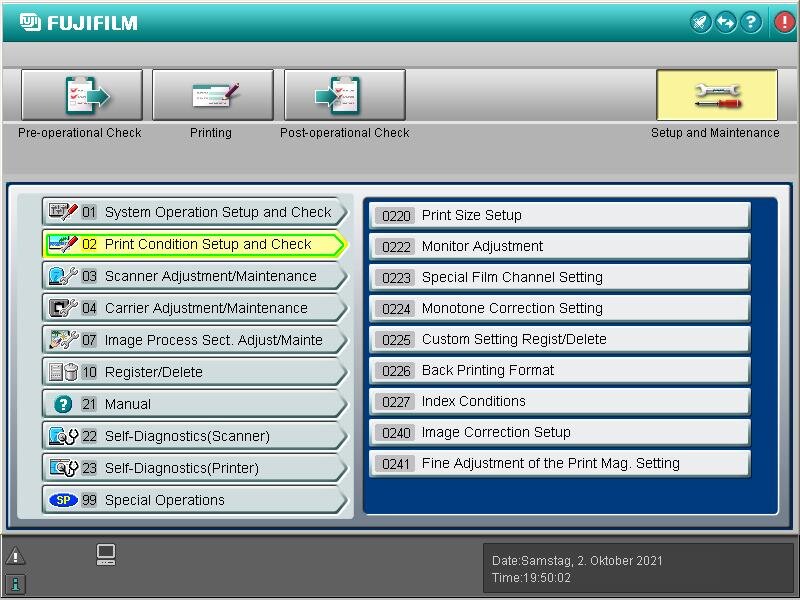

Go to "Setup and Maintenance" in the menu of your Frontier scanner (7777 menu)
select


"02 Print Condition Setup and Check", then

"[0241 Fine Adjustment of the Print Mag. Setting"

Step - 02

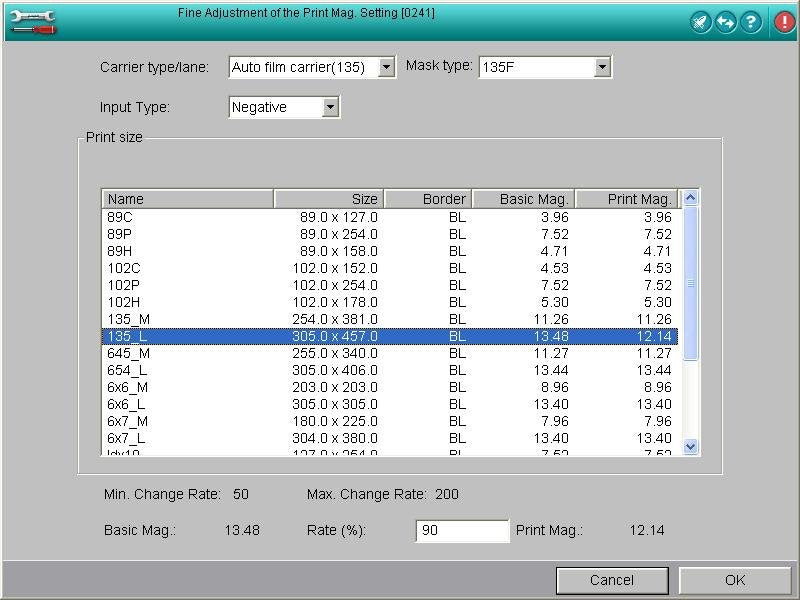

Set the magnification (Rate (%):) from 100% to 90% for the affected formats.

Afterwards, scan a test strip.

IMPORTANT
Selecting the correct combination of "Carrier type/lane", "Mask type", and "Input Type" is essential for each format.

Step - 03

In some cases, the position of the masks needs to be adjusted.
To do so, select

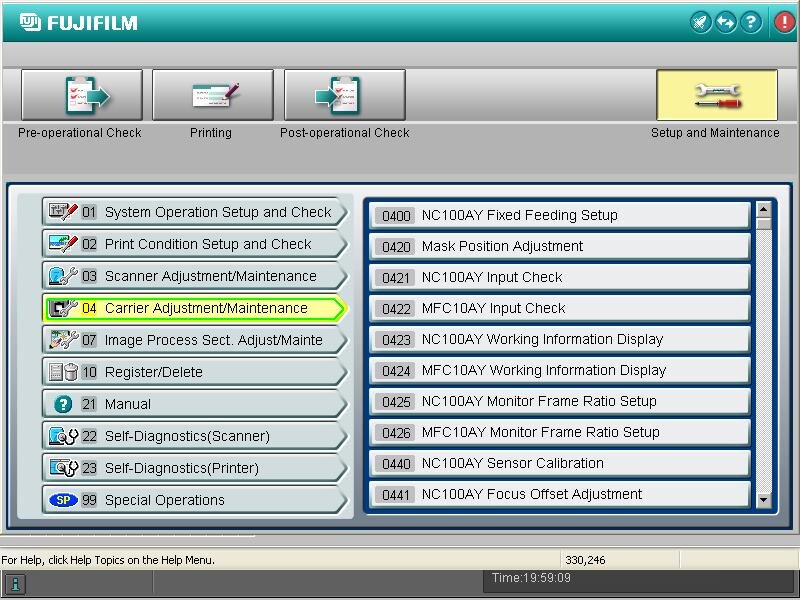

"04 Carrier Adjustment/Maintenance", then
"0420 Mask Position Adjustment".

Correct the mask position and double-check using another test strip.
